Above: Microscope images of lipid domains on the surface of spherical giant vesicles whose diameters are about the width of a human hair. Fluorescent lipids provide the contrast necessary to see the complex domain patterns (image credit Thais Enoki).
Compartmentalization is a fundamental organizing principle of biological systems.
The numerous chemical reactions and physical processes that support cellular life are enabled by a complex, three-dimensional compartmentalization of the cytosol into functionally specialized organelles. These include the endoplasmic reticulum, Golgi, and endocytic recycling compartment, as well as vesicular endosomes and lysosomes. Indeed, the evolution of the proto-compartment—the plasma membrane—was a critical development in the origin of life, delineating the living cell and providing its interface with the outside world.

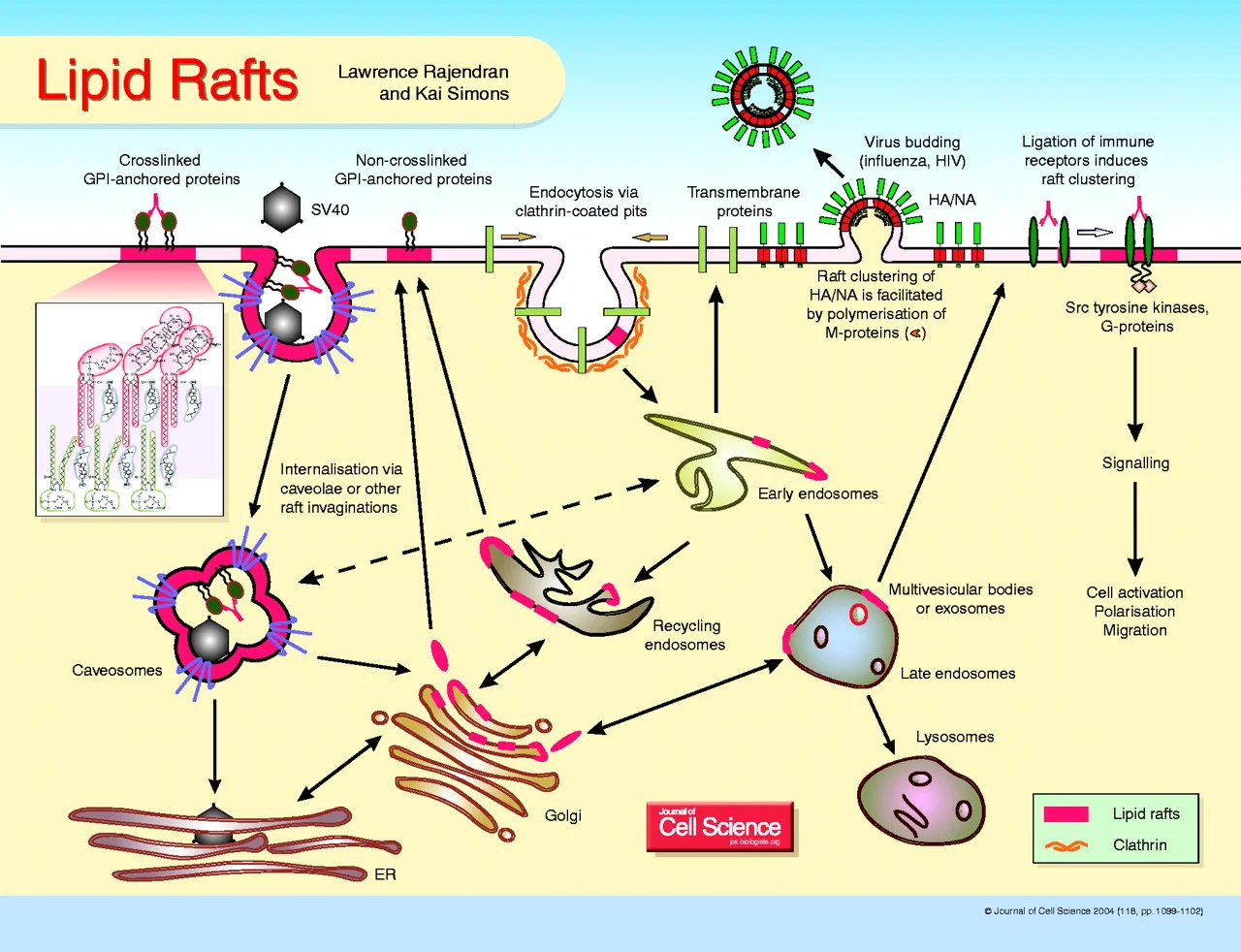

A few of the potential biological roles for lipid rafts (click to enlarge).
Given the ubiquity of compartmentalization in biology, it should not have been surprising to find substructure within the plane of the plasma membrane itself. Yet the discovery of lipid rafts—hard won through clever experiments spanning five decades, and involving thousands of researchers across multiple scientific disciplines—has triggered a complete re-imagining of the role of the plasma membrane in life's most important processes. The influence of rafts is apparently far-reaching, ranging from protein sorting and lipid trafficking within the cell, to signaling events outside the cell, to the pathogenesis of viruses including influenza and HIV.
How did rafts evade researchers for so long? In part, because they are too small to see with conventional scientific tools. For example, ordinary light microscopy is fundamentally incapable of resolving structures smaller than a few hundred nanometers in size (though special tricks can break through the “diffraction limit” and enable resolution of structures as small as a few tens of nanometers). To circumvent these limitations, our lab uses specialized techniques that can detect lipid domains as small as 5 nanometers in diameter.
Continue reading to learn more about our investigations of membrane domains …
Imaging nanoscopic domains with cryo electron microscopy
The advent of cryogenic electron microscopy (cryoEM) has revolutionized the field of structural biology, allowing for near-atomic resolution structures of the molecular architecture of proteins and nucleic acids. Importantly, cryoEM does not require the addition of any probe molecules to the sample, or any electron-dense stains to create image contrast. Compared to X-ray and neutron scattering—which produce reciprocal space data that must be interpreted by mathematical modeling—cryoEM has the distinct advantage that images are obtained in real space, in analogy to ordinary light microscopy. Scientists, it seems, are not immune to the old adage “seeing is believing”!
Specimens for cryoEM are prepared by plunging an aqueous sample of a biological material of interest into liquid ethane (–188 ºC) to rapidly freeze the water and lock in the ensemble of structures found in the macromolecular assembly under native conditions. When water is rapidly frozen in this way, it does not have time to form the well-ordered crystalline lattice that we are familiar with from everyday objects like ice cubes and snowflakes. Instead, it forms an amorphous solid similar to glass that scientists call non-crystalline or “vitreous” ice. This lack of long-range structure in the ice is crucial both for preserving the sample and for obtaining high quality EM images.
Given the excitement generated by cryoEM, it is perhaps surprising that as of early 2020, the revolution had not yet come for membranes. It was already known that with the right imaging conditions, lipid bilayers appear as double lines similar to railroad tracks, suggesting that membrane thickness can be directly measured in a cryoEM image. It is also known that ordered and disordered bilayer phases can be distinguished, among other properties, by their different thickness. Together with colleagues Neal Waxham and Ilya Levental at the University of Texas Health Science Center in Houston, our group was the first* to show real-space pictures of nanoscopic domains both in model and biological membranes, with contrast provided not by extrinsic probes, but by intrinsic differences in the thickness of the coexisting phases.
*A nearly identical discovery was made simultaneously in the Sarah Keller lab at the University of Washington, led by graduate student Caitlin Cornell. The two papers were submitted and published together in the journal PNAS.

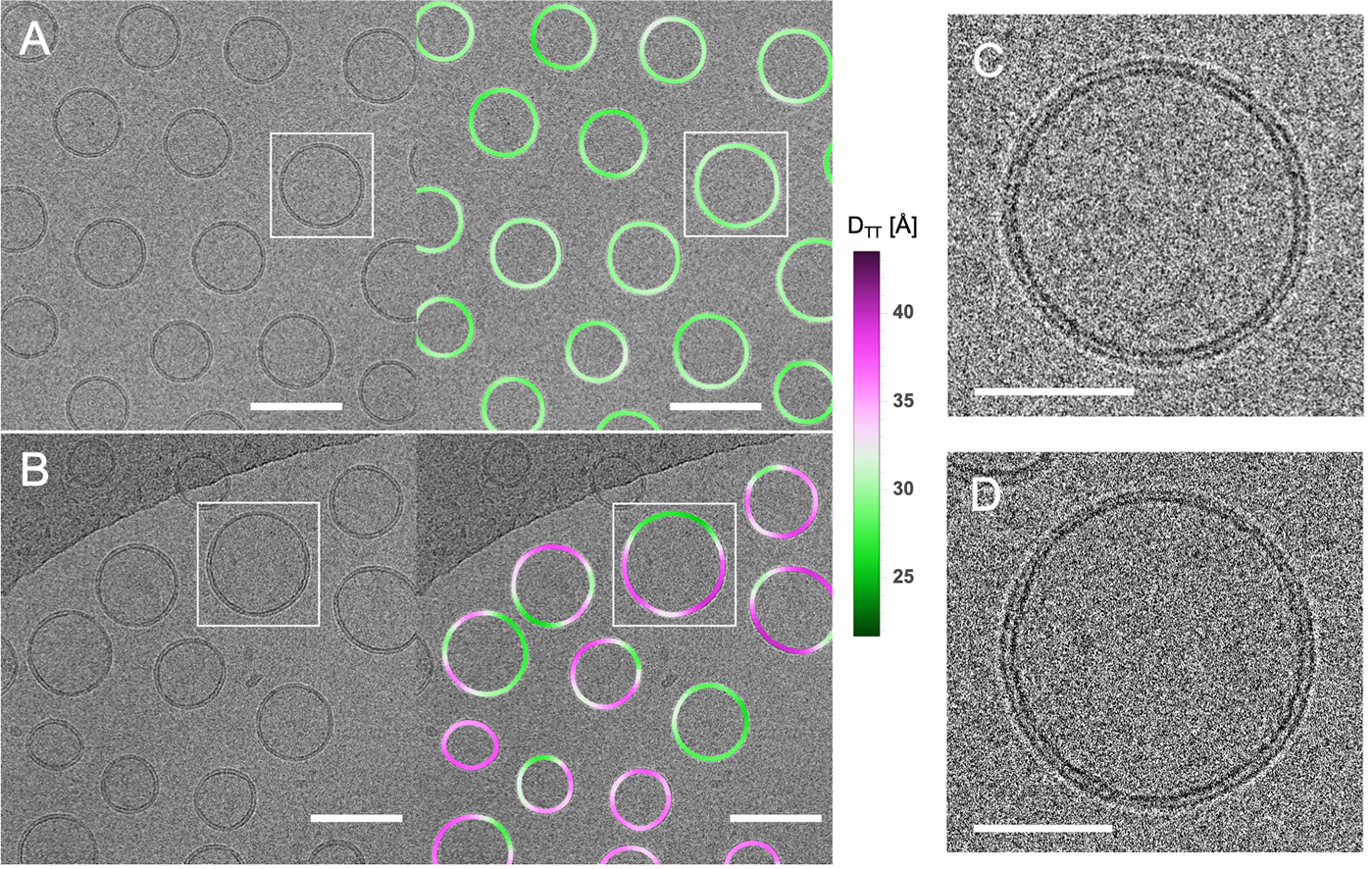

Direct visualization of coexisting liquid phases in cryoEM images of multicomponent lipid mixtures. (A) DOPC vesicles (with 5 mol% POPG) extruded through 50 nm pores (left) and the same image color-coded by variation in membrane thickness as measured by the distance between the double dark lines, termed the trough-trough distance DTT (right). (B) DPPC/DOPC/POPG/cholesterol 40/35/5/20 vesicles extruded through 50 nm pores (left) and the same image color-coded by variation in DTT (right), revealing significantly greater thickness variation within individual vesicles as compared to DOPC. Scale bars in panels A and B are 100 nm. (C and D) Zoom-in of boxed vesicles in panels A and B, respectively. Scale bars in panels C and D are 50 nm.
research articles
Heberle FA, Doktorova M, Scott HL, Skinkle A, Waxham MN, Levental I. 2020. Direct label-free imaging of nanodomains in biomimetic and biological membranes by cryogenic electron microscopy. Proceedings of the National Academy of Sciences of the USA 117:19943-19952.
Scott HL, Skinkle A, Kelley EG, Waxham MN, Levental I, Heberle FA. 2019. On the mechanism of bilayer separation by extrusion: or, why your LUVs are not really unilamellar. Biophysical Journal 117:1381-1386.
reviews
Levental I, Levental K, Heberle FA. 2020. Lipid rafts: controversies solved, mysteries remain. Trends in Cell Biology 30:341-353.
Heberle FA. 2019. With lipid rafts, context is everything. Biophysical Journal 117:1549-1551.
probe-free detection of lipid domains using neutrons

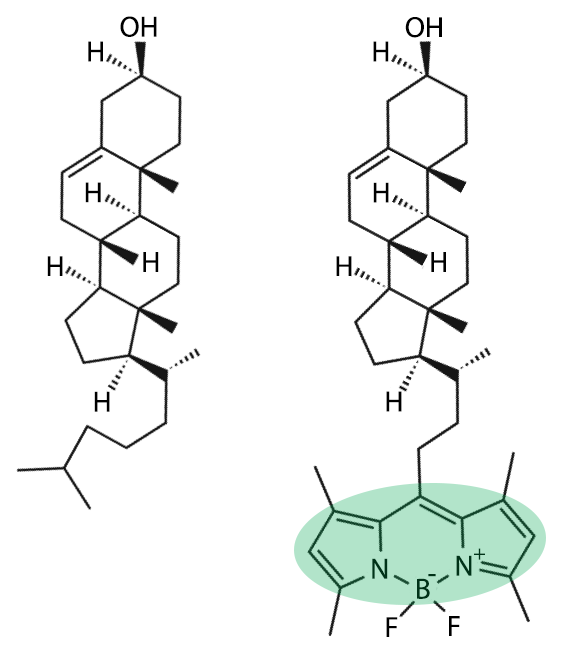

Cholesterol (left) is the most abundant lipid in mammalian plasma membranes. Adding a bulky fluorescent tag (right) can dramatically alter its interactions with other membrane lipids.
Unique among the major classes of biological structures, membranes are mixtures rather than polymers; their building blocks (i.e. lipids) are not joined by covalent bonds. Because membranes are instead held together by weak interactions, experimenting on them presents special challenges. For example, recent advances in microscopy techniques have revolutionized the study of biological systems using fluorescence (the inventors of two of these breakthrough techniques recently shared the Nobel Prize in Chemistry). By their very nature, these experiments usually require putting a fluorescent label on a molecule of interest to “probe” the system. While such experiments should always be carefully designed (with careful controls) to minimize the possibility of artifacts arising from the use of non-native molecules, this is especially true—and a well-documented problem—for membranes. In some cases, fluorescent lipids no longer behave like their unlabeled counterparts, which can lead to erroneous conclusions. Probes also introduce new types of interactions in the lipid mixture that can alter a membrane’s physical properties. In perhaps the worst-case scenario, fluorescent lipids can break down upon illumination and form free radical species that chemically react with other lipids, completely changing the composition and behavior of the membrane!

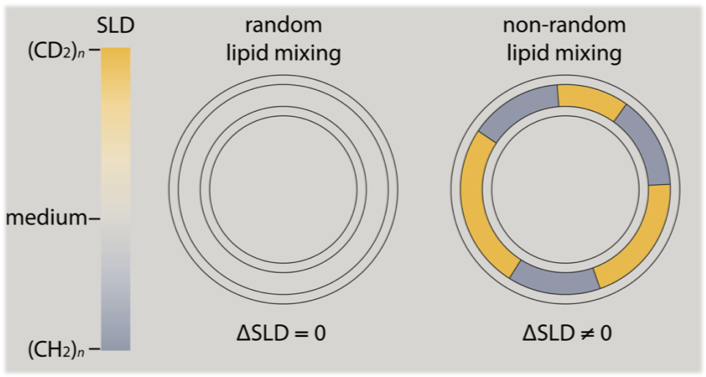

SANS, combined with contrast matching, is sensitive to the lateral organization of lipids in membranes.
While fluorescence techniques will always be important tools for membrane research, experiments that can inform on membrane properties while avoiding the use of probes are particularly valuable. Our group specializes in the development of innovative methods for detecting and characterizing rafts using probe-free techniques including small-angle neutron scattering (SANS). We use deuterated lipids to generate the contrast that allows SANS to “see” domains, analogous to the contrast provided by fluorescent probes under the microscope. Importantly, deuterium (2H, a stable isotope of hydrogen) is nearly identical to protium (1H, hydrogen’s other, far more naturally abundant stable isotope) in its chemistry, and replacing some of a biological molecule’s protium with deuterium usually has little effect on its properties and behavior. Yet because of their different nuclei, protium and deuterium interact very differently with neutrons. As a result, deuterated molecules scatter neutrons differently than their protium-containing counterparts. In the study of membrane structure, SANS—combined with selectively deuterated lipids—circumvents the need for bulky fluorescence or spin labels that can perturb the membrane's native phase behavior.

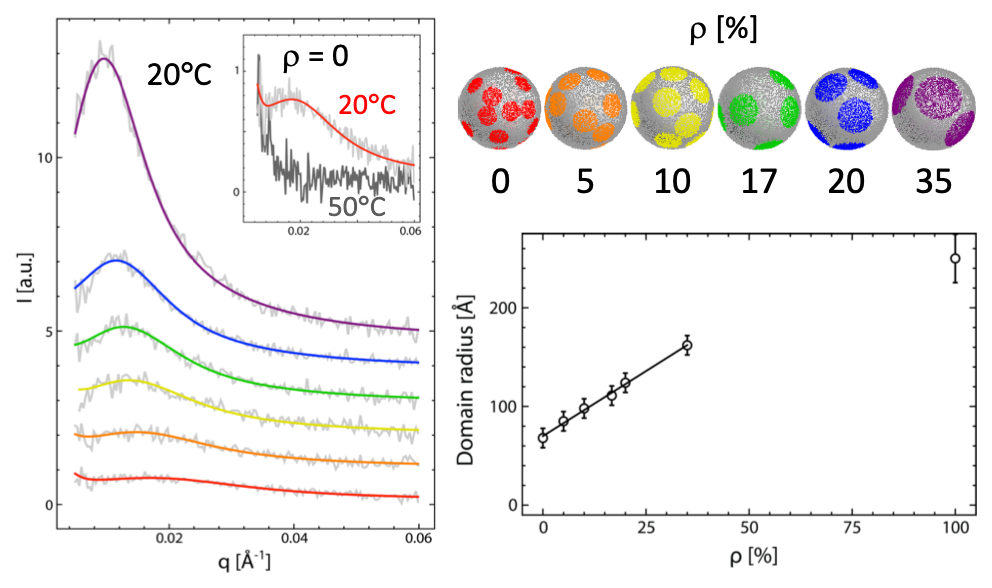

SANS data (left) reveal an increase in domain size with increasing fraction of dimonounsaturated DOPC in the low-melting lipid fraction. The solid lines are fits to the data from simulated vesicles, shown upper right. Image adapted from Heberle et al. 2013 JACS 135:6853.
When we applied our SANS contrast matching methodology to four-component model membranes, we found that domain size is strongly affected by the degree of acyl chain unsaturation of low-melting temperature lipids, and tightly correlated to the thickness mismatch between coexisting liquid phases. Taken together, these results suggest a dominant role for line tension in controlling raft size. We have also used this strategy to examine the influence of mixed-chain and polyunsaturated lipids, as well as various sphingomyelins, on domain size.
research articles
DiPasquale M, Nguyen MHL, Rickeard BW, Cesca N, Tannous C, Castillo SR, Katsaras J, Kelley EG, Heberle FA, Marquardt D. 2020. The antioxidant vitamin E as a membrane raft modulator: Tocopherols do not abolish lipid domains. Biochimica et Biophysica Acta Biomembranes 1862:183189.
Wassall SR, Leng X, Canner SW, Pennington ER, Kinnun JJ, Cavazos AT, Dadoo S, Johnson D, DeSantis A, Zeczycki T, Heberle FA, Katsaras J, Shaikh SR. 2018. Docosahexaenoic acid regulates the formation of lipid rafts: A unified view from experiment and simulation. Biochimica et Biophysica Acta 1860:1985-1993.
Usery RD, Enoki TA, Wickramasinghe SP, Weiner MD, Tsai W-C, Kim MB, Wang S, Torng TL, Ackerman DG, Heberle FA, Katsaras J, Feigenson GW. 2017. Line tension controls liquid-disordered + liquid-ordered domain size transition in lipid bilayers. Biophysical Journal 112:1431-1443 (Biophys. J. New and Notable).
Heberle FA, Doktorova M, Goh SL, Standaert RF, Katsaras J, Feigenson GW. 2013. Hybrid and Nonhybrid Lipids Exert Common Effects on Membrane Raft Size and Morphology. Journal of the American Chemical Society 135:14932-14935.
Heberle FA, Petruzielo RS, Pan J, Drazba P, Kučerka N, Standaert RF, Feigenson GW, Katsaras J. 2013. Bilayer Thickness Mismatch Controls Domain Size in Model Membranes. Journal of the American Chemical Society 135:6853-6859 (JACS Spotlight).
Petruzielo RS, Heberle FA, Drazba P, Katsaras J, Feigenson GW. 2013. Phase Behavior and Domain Size in Sphingomyelin-Containing Lipid Bilayers. Biochimica et Biophysica Acta 1828:1302-1313.
reviews
Heberle FA, Pabst G. 2017. Complex Biomembrane Mimetics on the Sub-Nanometer Scale. Biophysical Reviews 9:353-373.
Heberle FA, Myles DAA, Katsaras J. 2015. Biomembranes Research Using Thermal and Cold Neutrons. Chemistry and Physics of Lipids 192:41-50.
Marquardt D, Heberle FA, Nickels JD, Pabst G, Katsaras J. 2015. On scattered waves and lipid domains: Detecting rafts with X-rays and neutrons. Soft Matter 11:9055-9072.
Pan J, Heberle FA, Petruzielo RS, Katsaras J. 2013. The Use of Small-Angle Neutron Scattering to Detect Nanoscopic Lipid Domains. Chemistry and Physics of Lipids 170-171:19-32.
new experimental tools need new analytical tools

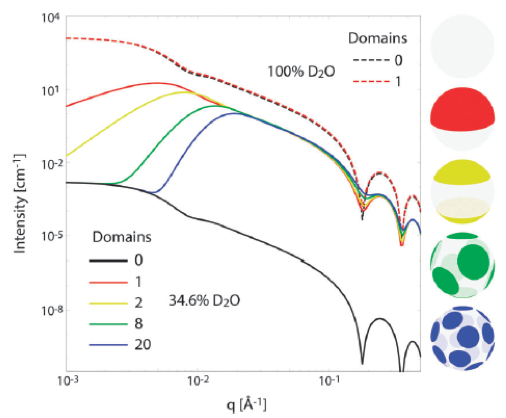

Theoretical predictions for SANS intensity from an analytical model parameterized by round domains of varying size. Image from Marquardt et al. 2015 Soft Matter 11:9055.
As the experimental possibilities for studying domains with neutrons have expanded, the analytical tools necessary to fully understand the data have not kept pace. We are continually looking for new ways of extracting more information from data, by developing computational methods and analytical scattering models that correctly capture important details of lipid spatial organization and dynamics.
Our network of collaborators includes theoretical physicists and experts in molecular dynamics (MD) who are pushing the boundaries of all-atom simulations of lipid bilayers to long time scales, where lateral organization can emerge. We work with them to develop analytical methodology for extracting neutron and X-ray scattering curves from the simulations, to enable valid comparison to experiments.
research articles
Dorrell MW, Heberle FA, Katsaras J, Maibaum L, Lyman E, Sodt AJ. 2020. Laterally resolved small-angle scattering intensity from lipid bilayer simulations: an exact and a limited-range treatment. Journal of Chemical Theory and Computation DOI:10.1021/acs.jctc.0c00132.
Heberle FA, Anghel VNP, Katsaras J. 2015. Scattering from phase-separated vesicles I. An analytical form factor for multiple static domains. Journal of Applied Crystallography 48:1391-1404.
reviews
Marquardt D, Heberle FA, Nickels JD, Pabst G, Katsaras J. 2015. On scattered waves and lipid domains: Detecting rafts with X-rays and neutrons. Soft Matter 11:9055-9072.
do fret about it: detecting tiny domains with fluorescence
While SANS has many advantages, it is ultimately a resource-limited technique: only a handful of neutron sources exist in the world, and acquiring instrument time is extremely competitive. Used properly, fluorescence techniques can also provide valuable information about lipid organization using ubiquitous laboratory equipment, and at a fraction of the cost of a neutron experiment. For the study of small domains, a phenomenon known as Förster resonance energy transfer or FRET is particularly useful. FRET acts like a molecular ruler for distances similar to the size of molecules—in other words, a few nanometers. Like SANS, it is sensitive to the presence of very small rafts that are impossible to see with ordinary fluorescence microscopy.
FRET between fluorescent donor and acceptor lipids in membranes composed of two phospholipids and cholesterol reveals phase separation over a wide region of composition space. Image from Heberle et al. 2010 Biophys. J. 99:3309.
Using FRET together with electron spin resonance and confocal microscopy, we determined phase diagrams for lipid mixtures that mimic the composition of the plasma membrane outer leaflet. These diagrams reveal a nearly universal propensity for liquid-liquid phase separation in lipid mixtures that mimic the composition of the plasma membrane outer leaflet. Just as importantly, they map the range of possible compositions for coexisting ordered and disordered phases, and are the starting point for systematic investigation of domain size and physical properties, including the experiments described in previous sections.
research articles
Scott HL, Baker JR, Frederick AJ, Kennison KB, Mendes K, Heberle FA. 2020. FRET from phase-separated vesicles: An analytical solution for a spherical geometry. Chemistry and Physics of Lipids 233:104982.
Enoki TA, Heberle FA, Feigenson GW. 2018. FRET Detects the Size of Nanodomains for Coexisting Liquid-Disordered + Liquid-Ordered Phases. Biophysical Journal 114:1921-1935.
Taylor GJ, Heberle FA, Seinfeld JS, Katsaras J, Collier CP, Sarles SA. 2017. Capacitive Detection of Low-Enthalpy, Higher Order Phase Transitions in Synthetic and Natural Composition Lipid Membranes. Langmuir 33:10016-10026.
Heberle FA, Doktorova M, Goh SL, Standaert RF, Katsaras J, Feigenson GW. 2013. Hybrid and Nonhybrid Lipids Exert Common Effects on Membrane Raft Size and Morphology. Journal of the American Chemical Society 135:14932-14935.
Konyakhina TM, Wu J, Mastroianni JD, Heberle FA, Feigenson GW. 2013. Phase Diagram of a 4-Component Lipid Mixture: DSPC/DOPC/POPC/chol. Biochimica et Biophysica Acta 1828:2204-2214.
Petruzielo RS, Heberle FA, Drazba P, Katsaras J, Feigenson GW. 2013. Phase Behavior and Domain Size in Sphingomyelin-Containing Lipid Bilayers. Biochimica et Biophysica Acta 1828:1302-1313.
Konyakhina TM, Goh SL, Amazon JA, Heberle FA, Wu J, Feigenson GW. 2011. Control of a Nanoscopic-to-Macroscopic Transition: Modulated Phases in 4-Component DSPC/DOPC/POPC/chol Giant Unilamellar Vesicles. Biophysical Journal 101:L08-L10.
Heberle FA, Wu J, Goh SL, Petruzielo RS, Feigenson GW. 2010. Comparison of three ternary bilayer mixtures: FRET and ESR reveal nanodomains. Biophysical Journal 99:3309-3318
reviews
Heberle FA, Petruzielo RS, Goh SL, Konyakhina TM, Ackerman DG, Amazon JJ, Feigenson GW. 2014. Liposome-Based Models for Membrane Rafts: Methodology and Applications. In Liposomes, Lipid Bilayers and Model Membranes: From Basic Research to Application. G. Pabst, editor. CRC Press. Boca Raton, FL.
Heberle FA, Feigenson GW. 2011. Phase Separation in Lipid Membranes. In The Biology of Lipids: Trafficking, Regulation, and Function. K. Simons, editor. Cold Spring Harbor Laboratory Press. New York. 49-61.
